LQ116K1JX01 11.6Inch 135PPIM 1366×768RGB 600cd/m² Sharp TFT LCD Display

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LQ116K1JX01 11.6Inch 135PPIM 1366×768RGB 600cd/m² Sharp TFT LCD Display

  • 1
  • 2
  • 3

Brand Name : SHARP

Model Number : LQ116K1JX01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 300PCS

Delivery Time : 1-2 DAYS

Packaging Details : 30 pcs / box 529×359×247 mm 10.5 Kgs

Panel Size : 11.6Inch

Panel Model : LQ116K1JX01

Resolution : 1366(RGB)×768, WXGA, 135PPI

Brightness : 600 cd/m² (Typ.)

Signal Interface : eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector

Lamp Type : WLED , 15K hours , With LED Driver

Viewing Angle : 80/80/80/80 (Typ.)

Environment : Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Contact Now

LQ116 Series LQ116T1JW03 LQ116M1JX07 LQ116M1JX06 LQ116M1JW02 LQ116K1JX01

Sharp LQ116K1JX01 Optical Details

Basic Information : Luminance 600 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode VA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.302; Wy:0.312 Support Color 262K (6-bit)
Color Temperature 7351K White Uniformity 1.40/1.82 (Max.)(5/13 points)
1931 Color Gamlt : NTSC Ratio 44% sRGB 62% coverage
Adobe RGB 46% coverage DCI-P3 46% coverage
Rec.2020 33% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ116K1JX01 Mechanical Details

Pixel Features : Number of Pixel 1366(RGB)×768 [WXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0625×0.1875 mm Pixel Pitch(W×H) 0.1875×0.1875 mm [135PPI]
Physical Size : Active Viewing 256.125(W)×144(H) mm Overall Dim. 268(W)×158.5(H) mm
Bezel Opening - Overall Depth 2.95/5.3 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style Slim (PCBA Bent, T≤3.0mm)
Fixation : Without
Other Detail : Mass 195/210g (Typ./Max.) Surface Glare (Haze 0%), Hard coating (3H)

Sharp LQ116K1JX01 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : No
Power Consumption : 5.13W (Typ.)

Sharp LQ116K1JX01 Interface Details

Signal Electrical : Input Current 220/424mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption 0.73/1.4W (Typ./Max.) Signal Interface eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane)
Interface Features : Position Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
I-PEX 20455-030E-12 1 pcs 0.5 mm 30 pins EDP-30P1L-030A

Sharp LQ116K1JX01 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 15K(Typ.) (Hours)
Interface Features : Position - Physical Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Input Current 367/417mA (Typ./Max.) Input Voltage 5.5/12.0/21.0V (Min./Typ./Max.)
Consumption 4.4/5.0W (Typ./Max.)

LQ116K1JX01 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 268(W)×158.5(H)×5.3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 195/210g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a VA, Normally Black, Transmissive LCM product, LQ116K1JX01 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 44% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ116K1JX01 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

LQ116K1JX01 11.6Inch 135PPIM 1366×768RGB 600cd/m² Sharp TFT LCD Display


Product Tags:

LVDS TFT LCD Display



WLED High Brightness LCD Display


Wholesale LQ116K1JX01 11.6Inch 135PPIM 1366×768RGB 600cd/m² Sharp TFT LCD Display from china suppliers

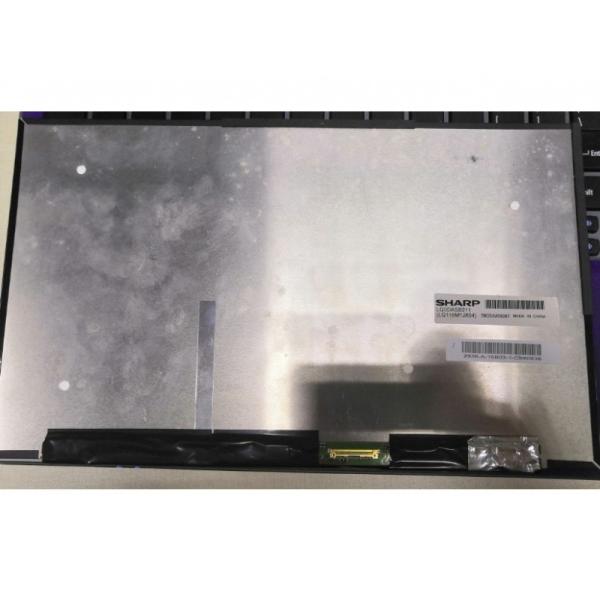

LQ116K1JX01 11.6Inch 135PPIM 1366×768RGB 600cd/m² Sharp TFT LCD Display Images
