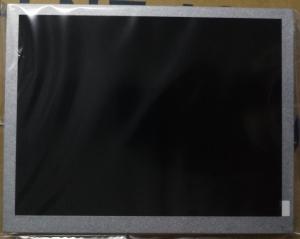

G070Y2-T02 INNOLUX 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : INNOLUX

Model Number : G070Y2-T02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G070Y2-T02

BRAND : INNOLUX

SIZE : 7.0INCH

BRIGHTNESS : 500CD/M2

Lamp Type : WLED

RESOLUTION : 800(RGB)×480, WVGA, 133PPI

VIEWING ANGLEG : 70/70/60/60 (Typ.)(CR≥10)

TEMPERATURE RANGE : perating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)

Contact Now

Innolux G070Y2-T02 Application Details

Basic Detail : Manufacturer Model Name G070Y2-T02
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 7.0 inch Designed For



Maximum Ratings : OP Temperature -30 ~ 85 °C ST Temperature -40 ~ 95 °C
Vibration Level 3.0G (29.4 m/s²) RoHS

Innolux G070Y2-T02 Optical Details

Basic Information : Luminance 500 cd/m² (Typ.) Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 5/11 (Typ.)(Tr/Td) (ms)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 74% sRGB 97% coverage
Adobe RGB 75% coverage DCI-P3 77% coverage
Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux G070Y2-T02 Mechanical Details

Pixel Features : Number of Pixel 800(RGB)×480 [WVGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0635×0.1905 mm Pixel Pitch(W×H) 0.1905×0.1905 mm [133PPI]
Physical Size : Active Viewing 152.4(W)×91.44(H) mm Overall Dim. 165(W)×104(H) mm
Bezel Opening 154.6(W)×93.64(H) mm Overall Depth 6.33±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 15:9 Shape Style
Fixation : Without
Other Detail : Mass 132±15g Surface Antiglare, Hard coating (3H)

Innolux G070Y2-T02 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 3.45W (Typ.)
Time Controller (T-CON) : Embedded T-CON

Innolux G070Y2-T02 Interface Details

Signal Electrical : Input Current 22/29/0.216/0.213mA (Typ.)(ICC/IDD/IGG/IEE) Input Voltage 3.3/10/19/-6.8V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption - Signal Interface TTL (1 ch, 6/8-bit)
Logic Voltage for Signals : 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features : Position - Physical Type FPC
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
1 pcs 0.5 mm 60 pins

Innolux G070Y2-T02 Lightting Details

Lamp Features: Lamp Shape Array Lamp Type WLED Position Edge light type (Bottom side)
Exchange - Amount 7S2P Life 50K(Min.) (Hours)
Lamp Electrical : Input Current 110mA (Typ.) Input Voltage 18.9/28.0/31.5V (Min./Typ./Max.)
Consumption 3.08W (Typ.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
1 pcs 2 pins BLE-2PINS-AC
Backlight Driver : No

Innolux G070Y2-T02 Packing Details

Package Box : Amount Size (L×W×H) Weight
34 pcs / box 465×362×314 mm -

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
