LQ121 SeriesLQ121S1DG81 LQ121S1DG61 LQ121S1DG49 LQ121S1DG43 LQ121S1DG42
Sharp LQ121S1DG81 Mechanical Features
| Panel Size : | 12.1 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | 249.0×187.5 mm | 276×209 mm | 11.0 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | |
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 650g | Antiglare, Hard coating (3H) |
Sharp LQ121S1DG81 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 80/80/60/80 (Typ.)(CR≥10) | 6 o'clock | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6914K | 262K (6-bit) | X:0.305; Y:0.330 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.33 (Max.)(5 points) |
Sharp LQ121S1DG81 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 400/500mA (Typ./Max.) | 3.3V (Typ.) | - |
| Voltage for Display Signals : | VIL≤0.8V; 2.1V≤VIH |
| Interface Features : | Position | Type | Interface |
| - | Connector | Parallel RGB (1 ch, 6-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9MA-41P-1V | 1 pcs | 1.0 mm | 41 pins |
Sharp LQ121S1DG81 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | - | - | 70K(Typ.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Connector | With LED Driver |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM06B-SHLS-TF | 1 pcs | 1.0 mm | 6 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 400/600mA (Typ./Max.) | 12.0±1.8V | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

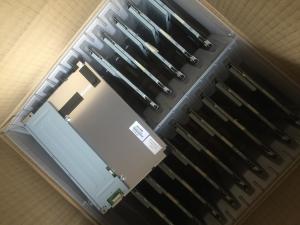

LQ121S1DG81 Sharp 12.1" LCM 800×600RGB 450cd/m² INDUSTRIAL LCD DISPLAY Images
|
