LQ121 Series LQ121S1LG45 LQ121S1LG44 LQ121S1LG42 LQ121S1LG41 LQ121S1LG0A
Sharp LQ121S1LG41 Mechanical Features
| Panel Size : | 12.1 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | 249.0×187.5 mm | 276×209 mm | 11.0 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | |
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 660g (Max.) | Antiglare, Hard coating (3H) |
Sharp LQ121S1LG41 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 370 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 10/30 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 69% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25 (Max.)(5 points) |
Sharp LQ121S1LG41 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 380/230mA (Typ.)(3.3/5.0V) | 3.3/5.0V (Typ.) | - |
| Interface Features : | Position | Type | Interface |
| - | Connector | LVDS (1 ch, 6-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SE20M | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C6B-070D |
Sharp LQ121S1LG41 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| CCFL | Edge light type (Top side) | Straight | 2 pcs | 50K(Min.) | Replaceable (LQ0DDB5399) |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
| 3.0/6.0/6.5mA (Min./Typ./Max.) | 583V (Typ.) | 7.0W (Typ.) |
| Turn-on Voltage | Lamp Frequency |
| 1200/1500V (Max.)(Ta=+25/-10℃) | 40/60/80KHz (Min./Typ./Max.) |
| Interface Features : | Position | Type | CCFL Driver |
| - | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL |
LQ121S1LG41 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 276(W)×209(H)×11(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 660g (Max.). As a TN, Normally White, Transmissive LCM product, LQ121S1LG41 can provides 370 cd/m² display brightness 450:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
Product Tags:
|
|

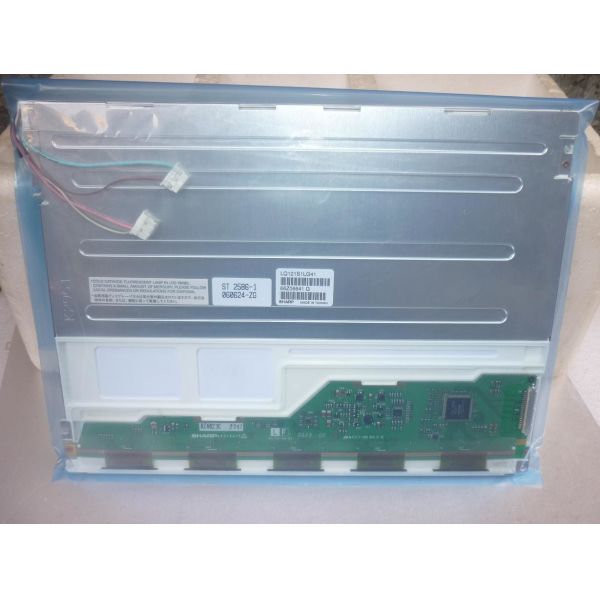

LQ121S1LG41 Sharp 12.1" LCM 800×600RGB 370cd/m² INDUSTRIAL LCD DISPLAY Images
|
