KCG062HV1AE-G00 Kyocera 6.2INCH LCM 640×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCG062HV1AEG00 Kyocera 62INCH LCM 640240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Wholesale KCG062HV1AE-G00 Kyocera 6.2INCH LCM 640×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : Kyocera

Model Number : KCG062HV1AE-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : KCG062HV1AE-G00

SIZE : 6.2INCH

RESOLUTION : 640×240RGB

BRIGHTNESS : 130 cd/m² (Typ.)

Screen Type : LCM , CSTN-LCD

Signal Type : Parallel Data (8-bit) , 20 pins Connecto

TEMPERATURE RANGE : Storage Temp.: -20 ~ 60 °C

Contact Now

Kyocera KCG062HV1AE-G00 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		KCG062HV1AE-G00	CSTN-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :	-	0 ~ 50 °C	-20 ~ 60 °C

Kyocera KCG062HV1AE-G00 Mechanical Features

Screen Size :	6.2"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	640(RGB)×240, HVGA	RGB Vertical Stripe	0.077×0.231 mm	0.231×0.231 mm [109PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	147.82×55.42 mm	152.4×60.0 mm	174.2×73.4 mm	9.4/13.5 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	8:3	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	-	4-wire Resistive Touch
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	170g (Typ.)	-	Glare (Haze 0%)

Kyocera KCG062HV1AE-G00 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	130 cd/m² (Typ.)	STN, Normally Black, Transmissive	30:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	50/50/30/20 (Typ.)(CR≥2)	190/180 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	7351K	Color	X:0.300; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	33%	46%	34%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	34%	24%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCG062HV1AE-G00 Electronics Features

Refresh Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCG062HV1AE-G00 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type	54K(Typ.)	1 pcs	Straight	-
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	395V (Typ.)		2.0/5.0/6.0mA (Min./Typ./Max.)
	Operating Frequency		Startup Voltage
	40/100KHz (Min./Max.)		645/965V Max.)(Ta=+25/0℃)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	Optional			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	BHR-03VS-1	1 pcs	3 pins	4.0 mm	BLL-3PINS-HNL

Kyocera KCG062HV1AE-G00 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		55/83mA (Typ./Max.)			182/274mW (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel Data (8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	Kyocera Elco	08-6210-020-340-800	1 pcs	20 pins	0.5 mm	PD-20P1C8B-010A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCG062HV1AE-G00 Kyocera 6.2INCH LCM 640×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL CSTN LCD Panel

VGA Lcd Video Panel

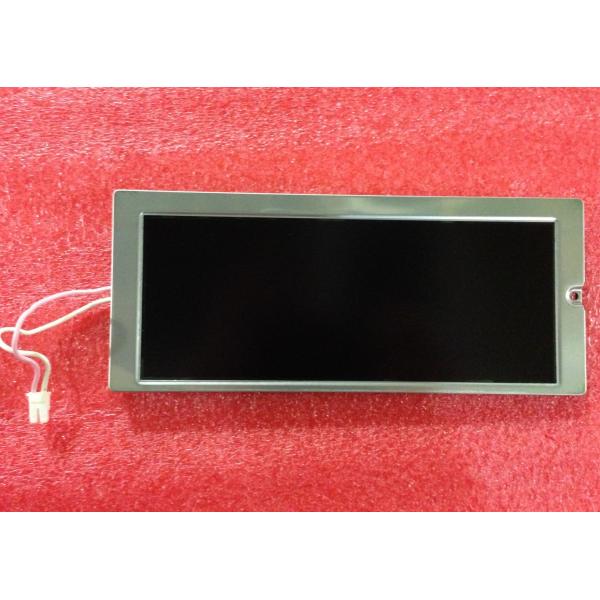

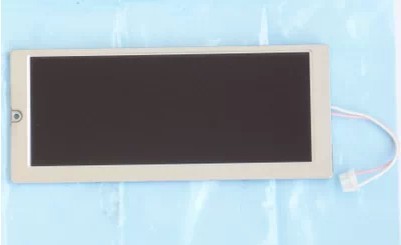

KCG062HV1AE-G00 Kyocera 6.2INCH LCM 640×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY Images
