KG057QV1CA-G04 Kyocera 5.7INCH LCM 320×240RGB 260NITS CCFL INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

KG057QV1CA-G04 Kyocera 5.7INCH LCM 320×240RGB 260NITS CCFL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : KG057QV1CA-G04

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : KG057QV1CA-G04

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 260 cd/m² (Typ.)

Signal Interface : Parallel Data (4-bit) , 20 pins Connector

Lamp Type : 1 pcs CCFL , 58K hours , Without Driver

TEMPERATURE RANGE : Operating Temp.: 0 ~ 60 °C

Contact Now

Kyocera KG057QV1CA-G04 Application Features

Basic Information : Brand Name Model Name Type Model Alias
KG057QV1CA-G04 STN-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 60 °C -20 ~ 60 °C -
Application :
Typical Features :

Kyocera KG057QV1CA-G04 Mechanical Features

Screen Size : 5.7"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320×240, QVGA Rectangle 0.360×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.18×86.38 mm 119.4×90.6 mm 144×104.8 mm 9.0/13.2 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
175g - Glare (Haze 0%)
Holes & Brackets : Rear mounting poles (4-Φ2.6)

Kyocera KG057QV1CA-G04 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
260 cd/m² (Typ.) STN, Blue mode (Negative), Transmissive 4:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 45/45/20/40 (Typ.)(CR≥10) 380/120 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6477K Monochrome X:0.313; Y:0.330

Kyocera KG057QV1CA-G04 Electronics Features

Refresh Rate : 75Hz
Reverse Scan : No
Driving Method : Duty: 1/240

Kyocera KG057QV1CA-G04 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type 58K(Typ.) 1 pcs - -
CCFL Electrical : Input Voltage Input Current Power Consumption
330V (Typ.) 3.0/4.0/6.0mA (Min./Typ./Max.)
Operating Frequency Startup Voltage
40/100KHz (Min./Max.) 530/790V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-HNL

Kyocera KG057QV1CA-G04 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3/5.0V (Typ.)(VDD) 42.0/29.0mA (Typ./Max.)(IDD) -
Interface Features : Signal Type Physical Type Interface Position
Parallel Data (4-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
Kyocera Elco 08-6210-020-340-800+ 1 pcs 20 pins 0.5 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KG057QV1CA-G04 Kyocera 5.7INCH LCM 320×240RGB 260NITS CCFL INDUSTRIAL LCD DISPLAYKG057QV1CA-G04 Kyocera 5.7INCH LCM 320×240RGB 260NITS CCFL INDUSTRIAL LCD DISPLAY


Product Tags:

CCFL CSTN LCD Panel



VGA Lcd Video Panel


Wholesale KG057QV1CA-G04 Kyocera 5.7INCH LCM 320×240RGB 260NITS CCFL INDUSTRIAL LCD DISPLAY from china suppliers

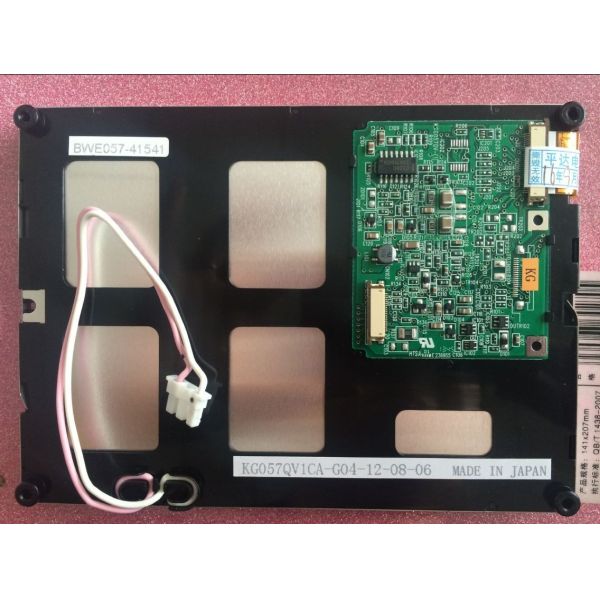

KG057QV1CA-G04 Kyocera 5.7INCH LCM 320×240RGB 260NITS CCFL INDUSTRIAL LCD DISPLAY Images
