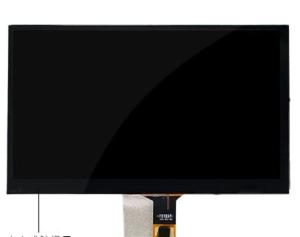

JJ070IA-18L Innolux 7.0" 800(RGB)×480 750 cd/m² INDUSTRIAL LCD DISPLAY

Name: JJ070IA18L Innolux 70quot 800RGB480 750 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Wholesale JJ070IA-18L Innolux 7.0" 800(RGB)×480 750 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : INNOLUX

Model Number : JJ070IA-18L

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : JJ070IA-18L

BRAND : INNOLUX

SIZE : 7.0INCH

BRIGHTNESS : 750CD/M2

Lamp Type : WLED

RESOLUTION : 800(RGB)×480 [WVGA] 133PPI

VIEWING ANGLEG : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

Innolux JJ070IA-18L Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		JJ070IA-18L	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-30 ~ 85 °C	-40 ~ 90 °C	2.0G (19.6 m/s²)

Innolux JJ070IA-18L Mechanical Features

Panel Size :	7.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.0635×0.1905 mm	0.1905×0.1905 mm [133PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	152.4×91.44 mm	155.4×94.44 mm	162.8×104.84 mm	5.5 (Typ.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	15:9 (W : H)	Landscape type
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	195±9g	Antiglare

Innolux JJ070IA-18L Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	750 cd/m² (Typ.)	IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	80/80/80/80 (Typ.)(CR≥10)	Symmetry	15/10 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6638K	16.7M (8-bit)	X:0.310; Y:0.330
Luminance Variation :	1.43 (Max.)(9 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable

Innolux JJ070IA-18L Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

Innolux JJ070IA-18L Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	-		3.3/13.3/26/-7V (Typ.)(VDD/VDDA/VGH/VGL)			450mW (Typ.)
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	LVDS (1 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs		50 pins

Innolux JJ070IA-18L Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	2 strings	7S2P	20K(Typ.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	65mA (Typ.)		22.4/24.8/26.4V (Min./Typ./Max.)			3.23W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in panel signal interface	No

Innolux JJ070IA-18L Packing Features

Package Carton :	Amount	Weight	Carton Size
Package Carton :	50 pcs / box	-	535×370×260 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
