T-51750GD065J-FW-ADN Kyocera 6.5INCH LCM 640×480RG 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Name: T51750GD065JFWADN Kyocera 65INCH LCM 640480RG 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Wholesale T-51750GD065J-FW-ADN Kyocera 6.5INCH LCM 640×480RG 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : Kyocera

Model Number : T-51750GD065J-FW-ADN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 300PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-51750GD065J-FW-ADN

BRAND : Kyocera

SIZE : 6.5INCH

RESOLUTION : 640×480RG

BRIGHTNESS : 400 cd/m² (Typ.)

Interface Type : Parallel RGB (1 ch, 6-bit) 31 pins Connector

Light Source : CCFL [2 pcs] , 50K hours , W/O Driver

TEMPERATURE RANGE : Operating Temperature: -25 ~ 75 °C

Contact Now

OPTREX T-51750GD065J-FW-ADN Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		T-51750GD065J-FW-ADN	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-25 ~ 75 °C	-25 ~ 85 °C	-

OPTREX T-51750GD065J-FW-ADN Mechanical Features

Screen Size :	6.5"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.069×0.207 mm	0.207×0.207 mm [122PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	132.48×99.36 mm	-	158×120.36 mm	10.75 (Typ.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	190g (Typ.)	-	Antiglare (Haze 9%)
Holes & Brackets :	Face mounting holes (2-Φ3.5, 2-R1.75)

OPTREX T-51750GD065J-FW-ADN Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	400 cd/m² (Typ.)	TN, Normally White, Transmissive	300:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	55/55/30/60 (Typ.)(CR≥10)	15/16 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6173K	262K (6-bit)	X:0.320; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	39%	54%	41%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	41%	29%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.43 (Max.)(5 points)

OPTREX T-51750GD065J-FW-ADN Electronics Features

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)

OPTREX T-51750GD065J-FW-ADN Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type (Top and Bottom)	50K(Min.)	2 pcs	Straight	Replaceable
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	320V (Typ.)		6.0/7.0mA (Typ./Max.)
	Operating Frequency		Startup Voltage
			520V (Max.)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	BHR-02(8.0)VS-1N	2 pcs	2 pins	8.0 mm	BLL-2PINS-HL

OPTREX T-51750GD065J-FW-ADN Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3/5.0V (Typ.)(VCC)		240/180mA (Typ.)(ICC)			-
Voltage for Display Signals :	0≤VIL≤0.8V; 2.4V≤VIH≤5.5V
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (1 ch, 6-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	HRS	DF9B-31P-1V	1 pcs	31 pins	1.0 mm	DRGB-31P1C6B-010F

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-51750GD065J-FW-ADN Kyocera 6.5INCH LCM 640×480RG 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

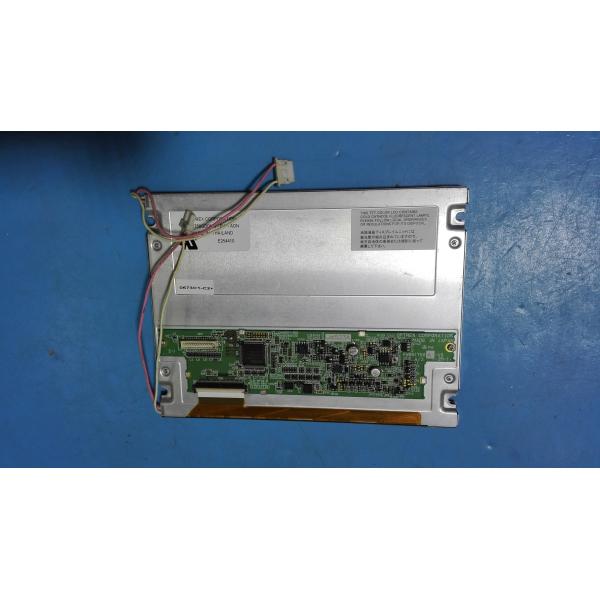

T-51750GD065J-FW-ADN Kyocera 6.5INCH LCM 640×480RG 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY Images
