1. Main Information:
The TM050RDH03-41 is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, Matte . Based on its features,this model be applied to Industrial, Portable Navigation, MID UMPC, MP3 PMP etc.
2. TIANMA TM050RDH03-41 Mechanical Features:
| Panel Size : | 5 Inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.045×0.135 mm | 0.135×0.135 mm [188PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 108×64.8 mm | 111.1×67.9 mm | 120.7×75.8 mm | 3.10 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | - |
| Other Features : | Panel Cover | Weight | Surface |
| - | 57.0g (Typ.) | Antiglare, Hard coating (3H) |
3. TIANMA TM050RDH03-41 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 70/70/50/70 (Typ.)(CR≥10) | 12 o'clock | 20 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
4.TIANMA TM050RDH03-41 Interface Features:
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| - | 3.3V (Typ.) | 297mW (Typ.) |
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Interface Features : | Position | Type | Interface |
| - | FPC | Parallel RGB (1 ch, 8-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| | | 1 pcs | 0.5 mm | 40 pins |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

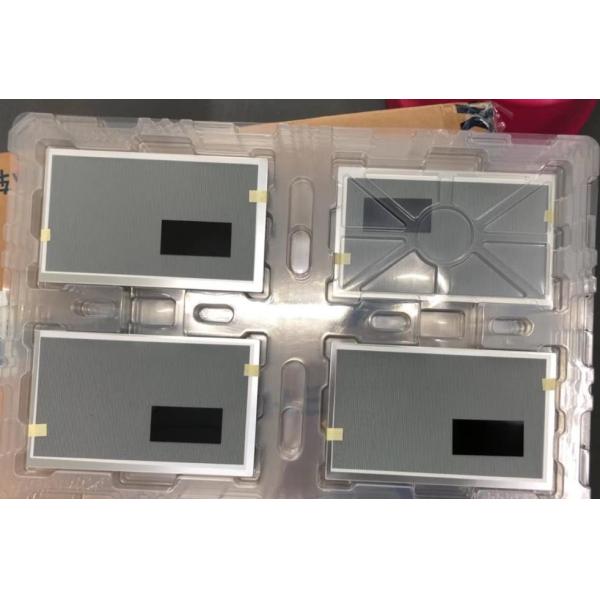

TM050RDH03-41 5 Inch 800*480 40 Pins FPC Navigation Panel 70/70/50/70 (Typ.)(CR≥10) Images
|
