1. Main Information:

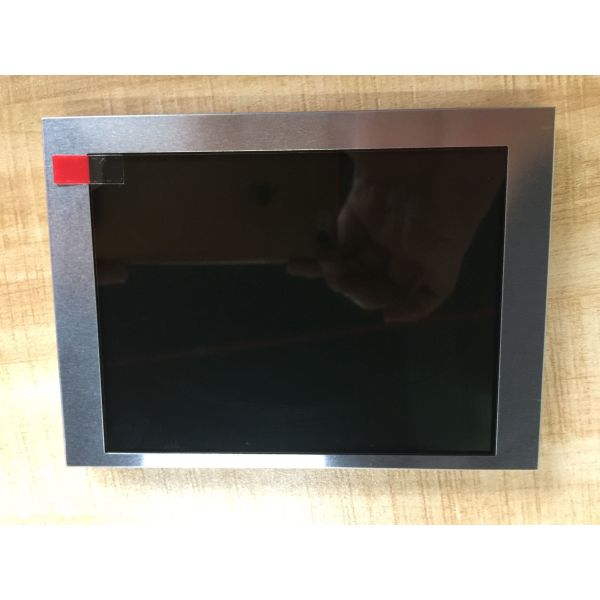

The TM050RBH01-41 is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: With Touch, WLED Backlight, Matte , 3 in 1 FPC; Left side FPC. Based on its features, this model be applied to Industrial, Portable Navigation, MID UMPC, MP3 PMP etc.
2. TIANMA TM050RBH01-41 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.045×0.135 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.135×0.135 (H×V) [188PPI] |
| Mechanical Size : | Active Area(mm) | 108(H) × 64.8(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 120.7(H) × 75.8(V) | Depth(mm) | 4.4/6.30 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - |
| Other Spec : | Weight | 76.3g | Treatment | Antiglare, Hard coating (3H) |
3. TIANMA TM050RBH01-41 Optical Details:
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock | Response(ms) | 20 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.320; Y:0.340 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6066K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM050RBH01-41 Backlight Details:
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | 6S3P | Life Time | 20K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 19.2V (Typ.) | Current Supply | 60/75mA (Typ./Max.) |
| Consumption | 1.152W (Typ.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | No |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
