5.7 Inch 320×240 LQ057Q3DC12 QVGA 70PPI Viewing angle65/65/65/40 TFT LCD Screen

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5.7 Inch 320×240 LQ057Q3DC12 QVGA 70PPI Viewing angle65/65/65/40 TFT LCD Screen

Brand Name : SHARP

Model Number : LQ057Q3DC12

Certification : IS09001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW

Supply Ability : 500

Delivery Time : Working Day:1-3 Days

Packaging Details : Original Factory Package

Price : 50USD

Screen Size : 5.7 inch

Pixel Number : 320(RGB)×240 (QVGA) 70PPI

Active Area(mm) : 115.2 × 86.4 (H×V)

Bezel Area(mm) : 121.0 × 92.2 (H×V)

Luminance : 500 cd/m² (Typ.)

Max. Ratings : -30 ~ 80 °C

Screen Type : LCM , a-Si TFT-LCD

Arrangement : RGB Vertical Stripe

Outline(mm) : 144 × 104.6 × 13.5 (H×V×D)

Backlight : 1 pcs CCFL , 50K hours , No Driver

Contact Now

LQ057Q3DC12 5.7 INCH SHARP 320(RGB)×240 (QVGA) 70PPI PIXEL -30 ~ 80 °C Industrial LCD Panel

1. Main Information:

Sharp Corporation (hereafter called Sharp) LQ057Q3DC12 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Life ≥ 50K hours, U/D,L/R Reverse , VGA/QVGA mode selectable. Based on its features, Panelook recommend that this model be applied to Industrial etc

2. Sharp LQ057Q3DC12 Mechanical Features

Panel Size : 5.7 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
320(RGB)×240, QVGA RGB Vertical Stripe 0.120×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
115.2×86.4 mm 121.0×92.2 mm 144×104.6 mm 12.3/13.5 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type -
Fixation : Rear mounting holes (4-Ф2.6)
Other Features : Panel Cover Weight Surface
- 220±20g Hard coating (3H)

3. Sharp LQ057Q3DC12 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
500 cd/m² (Typ.) TN, Normally White, Transmissive 350:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
65/65/65/40 (Typ.)(CR≥5) 12 o'clock 8/21 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 262K (6-bit) X:0.313; Y:0.329

4. Sharp LQ057Q3DC12 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
CCFL Edge light type (Top side) - 1 pcs 50K(Typ.) -
CCFL Electrical : Current Input Voltage Input Consumption
5.0±0.5mA 690±70V 3.5W (Typ.)
Turn-on Voltage Lamp Frequency
1350/1470V (Max.)(Ta=+25/-10℃) 30/60KHz (Min./Max.)
Interface Features : Position Type CCFL Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST BHR-03VS-1 1 pcs 4.0 mm 3 pins BLL-3PINS-LNH

5. FAQ:
Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

5.7 Inch 320×240 LQ057Q3DC12 QVGA 70PPI Viewing angle65/65/65/40 TFT LCD Screen


Product Tags:

320×240 TFT LCD Screen



5.7 Inch TFT LCD Screen



LQ057Q3DC12


Wholesale 5.7 Inch 320×240 LQ057Q3DC12 QVGA 70PPI Viewing angle65/65/65/40 TFT LCD Screen from china suppliers

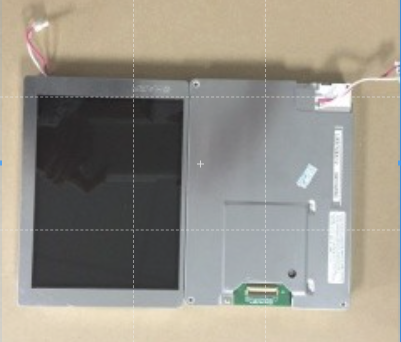

5.7 Inch 320×240 LQ057Q3DC12 QVGA 70PPI Viewing angle65/65/65/40 TFT LCD Screen Images
