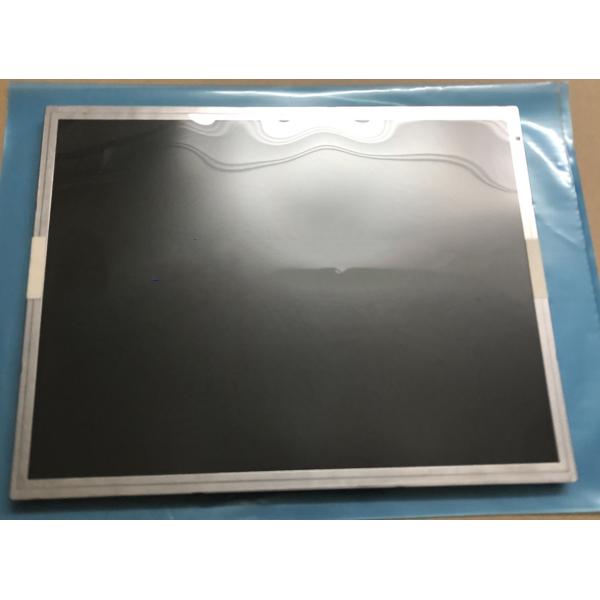

15 Inch NEC TFT Display NL10276BC30-34D PSWG Compatible Use For Industrial

  • 1
  • 2
  • 3

Brand Name : NEC

Model Number : NL10276BC30-34D

Certification : ISO9001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Days

Packaging Details : With Original Factory Package

Size : 15 Inch

Screen Type : LCM, a-Si TFT-LCD

Pixel Number : 1024(RGB)×768 (XGA) 85PPI

Luminance : 500 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Contrast Ratio : 600 : 1 (Typ.) (TM)

Response : 3/15 (Typ.)(Tr/Td)

Backlight : 6 strings WLED , 70K hours , Optional

Signal Type : LVDS (1 ch, 8-bit) , 20 pins Connector

Max. Ratings : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C

Contact Now

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2.NEC NL10276BC30-34D Mechanical Features:
Screen Size : 15.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1024(RGB)×768, XGA RGB Vertical Stripe 0.099×0.297 mm 0.297×0.297 mm [85PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
304.128×228.096 mm 307.4×231.3 mm 326.5×253.5 mm 11.5±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
0.97/1.05Kgs (Typ./Max.) - Antiglare, Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
3.NEC NL10276BC30-34D Optical Features:
Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) TN, Normally White, Transmissive 600:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
- 80/80/80/80 (Typ.)(CR≥10) 3/15 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
51% 71% 54%
DCI-P3 Coverage Rec.2020 Coverage Remarks
53% 38% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.20/1.35 (Typ./Max.)(5 points)

4.NEC NL10276BC30-34D Backlight Features:

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type (Bottom side) 70K(Typ.) 6 strings 6 strings Replaceable (150LHS36)
WLED Electrical : Input Voltage Input Current Power Consumption
23.9/27.0/30.6V (Min./Typ./Max.) 50/55mA (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
Optional Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SM12B-SRSS-TB 1 pcs 12 pins 1.0 mm BLE-12PINS-ACACACACACAC

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
