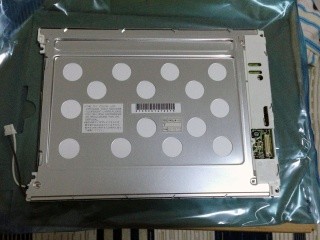

NL6448AC30-12 9.4 INCH NEC TFT-LCD 640(RGB)×480 (VGA) 84PPI PIXEL -20 ~ 60 °C industrial LCD panel
1. Main Information:
The NL6448AC30-12 is a 9.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . Based on its features, Panelook recommend that this model be applied to Laptop, Industrial etc.
2. NEC NL6448AC30-12 Mechanical Details
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.10×0.30 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.30×0.30 mm (H×V) [84PPI] |
| Mechanical Size : | Display Area | 192×144 mm (H×V) | Bezel Area | 202.1×152.2 mm (H×V) |
| Outline Dim. | 241.8×178.8 mm (H×V) | Outline Depth | 10.0 (Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) |
| Other Features : | Weight | 480/500g (Typ./Max.) | Surface | - |
3. NEC NL6448AC30-12 Backlight Details
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | - |
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Bottom side) |
| Lamp Electrical : | Voltage Input | 450V (Typ.) | Current Input | 3.7mA (Typ.) |
| Frequency | 54±4KHz | Kick-off Voltage | - |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL |
4. NEC NL6448AC30-12 Interface Details
| Signal Systerm : | CMOS (1 ch, 4-bit) | Logic Voltage | 0≤VIL≤0.8V; 2.2V≤VIH≤VCC |
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 200/350mA (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C4B-005A |
