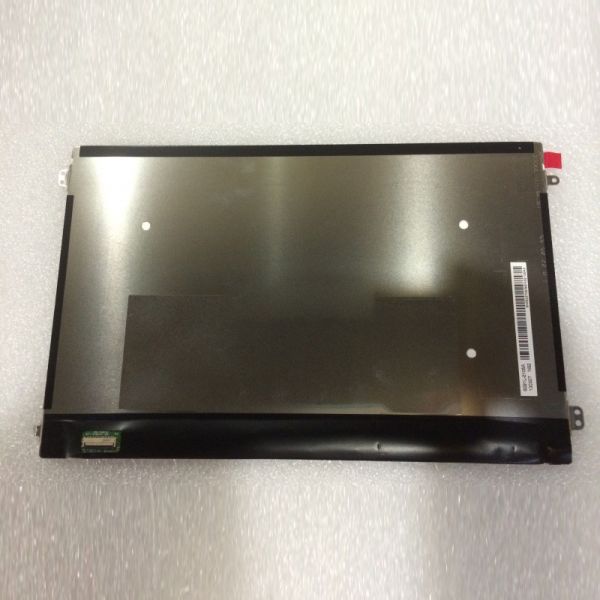

LP101WX2-SLP1 LG Display 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLA

Name: LP101WX2SLP1 LG Display 101quot 1280RGB800 400 cdm INDUSTRIAL LCD DISPLA
Brand: LG DISPLAY
Price: 1 USD

Wholesale LP101WX2-SLP1 LG Display 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLA from china suppliers

Brand Name : LG DISPLAY

Model Number : LP101WX2-SLP1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP101WX2-SLP1

BRAND : LG DISPLAY

SIZE : 10.1INCH

BRIGHTNESS : 400CD/M2

Lamp Type : WLED

RESOLUTION : 1280(RGB)×800, WXGA, 149PPI

VIEWING ANGLEG : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP101WX2-SLP1 Application Details

Basic Info :	Panel Brand		Panel Model	LP101WX2-SLP1
	Diagonal Size	10.1"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LP101WX2 (SL)(P1)
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C

LG Display LP101WX2-SLP1 Mechanical Details

Pixel Features :	Pixel Format	1280(RGB)×800 [WXGA]	Dot Pitch	0.0565×0.1695 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1695×0.1695 mm (H×V) [149PPI]
Mechanical Size :	Display Area	216.96×135.6 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	228.6×148.15 mm (H×V)	Outline Depth	2.5/4.45 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style
Holes & Brackets :	Face mounting holes (4 pcs) on left, right slugs
Other Features :	Weight	180g (Max.)	Surface	Glare (Haze 0%)

LG Display LP101WX2-SLP1 Optical Details

Basic Information :	Brightness	400 cd/m² (Typ.)	Contrast Ratio	500:1 (Min.) (Transmissive)
	Viewing Angle	80/80/80/80 (Min.)(CR≥10)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	35 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio	52%	sRGB	73% coverage
	Adobe RGB	55% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP101WX2-SLP1 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position	Edge light type
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	5.0/12.0/21.0V (Min./Typ./Max.)		Current Input	205/213mA (Typ./Max.)
Driver Electrical :	Consumption	2.46/2.55W (Typ./Max.)

LG Display LP101WX2-SLP1 Interface Details

Signal Systerm :	LVDS (1 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	157/181mA (Typ./Max.)
Signal Electrical :	Consumption	0.52/0.60W (Typ./Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	UJU	PF030-B40B-N09	0.3 mm	40 pins	1 pcs

LG Display LP101WX2-SLP1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	30 pcs / box	-	478×365×244 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
