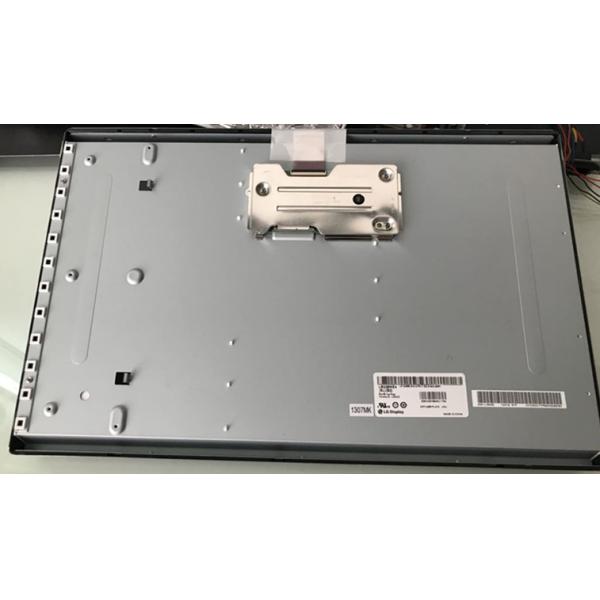

3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 43"89/89/89/89 (Typ.)(CR≥10)

Name: 38402160 103PPI WLED TFT Display 350cdm2 LC430EQEFHA1 43quot89898989 TypCR10
Brand: LG DISPLAY
Price: 1 USD

Wholesale 3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 43"89/89/89/89 (Typ.)(CR≥10) from china suppliers

Brand Name : LG DISPLAY

Model Number : LC430EQE-FHA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LC430EQE-FHA1

BRAND : LG DISPLAY

SIZE : 43 inch

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

RESOLUTION : 3840(RGB)×2160 [UHD] 103PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LC430EQE-FHA1 Application Details

Basic Info :	Panel Brand LC430EQE-FHA1Panel Model Diagonal Size 43" Application a-Si TFT-LCD , LCMPanel Type Model Alias LC430EQE (FH)(A1)
Reliability :	Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C

LG Display LC430EQE-FHA1 Mechanical Details

Pixel Features :	Pixel Format 3840(RGB)×2160, UHD Dot Pitch 0.0817×0.2451 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.2451×0.2451 mm (H×V) [103PPI]
Mechanical Size :	Display Area 941.184×529.416 mm (H×V) Bezel Area 946.2×534.4 mm (H×V) Outline Dim. 962×554.8 mm (H×V) Outline Depth 21.4/36.6 (Typ./Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style
Other Features :	Weight 7.50/8.50Kgs (Typ./Max.) Surface Antiglare (Haze 44%), Hard coating (2H)

LG Display LC430EQE-FHA1 Optical Details

Basic Information :	Brightness 350 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Min.)(CR≥10) Optical Mode IPS, Normally Black, Transmissive Viewing Direction Symmetry Response Time 6 (Typ.)(G to G) ms
Color Performance :	Chromaticity Wx:0.281; Wy:0.288 Color Numbers 16.7M (8-bit) Color Temperature 9966K Uniformity 1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 72% sRGB 98% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LC430EQE-FHA1 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 30K(Min.) (Hours) Replacement - Lamp Shape - Position Edge light type
Lamp Electrical :	Voltage Input 48.8±8.V Current Input 160mA (Typ.) Consumption 46.9/54.5W (Typ./Max.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration UJU HS100-L08N-N62 1.0 mm 8 pins 1 pcs BLE-8PINS-CCCNNNNA UJU HS100-L08N-N62-A 1.0 mm 8 pins 1 pcs BLE-8PINS-ANNNNCCC

LG Display LC430EQE-FHA1 Interface Detail

Signal Systerm :	V-by-One 8 lane Logic Voltage -
Signal Electrical :	Voltage Input 12.0V (Typ.) Current Input 510/663mA (Typ./Max.) Consumption 6.12/7.95W (Typ./Max.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration JAE FI-RE51S-HF 0.5 mm 51 pins 1 pcs

LG Display LC430EQE-FHA1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	26 pcs / box	-	1300×1140×746 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
