LM195WX1-SLC1 LG Display 19.5" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LM195WX1-SLC1 LG Display 19.5" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG DISPLAY

Model Number : LM195WX1-SLC1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 800PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM195WX1-SLC1

BRAND : LG DISPLAY

SIZE : 19.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1440(RGB)×900 [WXGA+] 87PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM195WX1-SLC1 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
LM195WX1-SLC1 a-Si TFT-LCD , LCM LM195WX1 (SL)(C1)
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
0 ~ 50 °C -20 ~ 60 °C

LG Display LM195WX1-SLC1 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
250 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G)
Best View on Display Mode Contrast Ratio
Symmetry IPS, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 95% 73%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.33 (Max.)(9 points)

LG Display LM195WX1-SLC1 Mechanical Features

Panel Size : 19.5"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1440(RGB)×900 [WXGA+] RGB Vertical Stripe 0.2907×0.2907 [87PPI] 0.0969×0.2907
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
418.608(H) × 262.35(V) 422.2(H) × 265.9(V) 442.2(H) × 286.6(V) 8/10.7 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:10 (H:V) Normal bezel
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Detail : Weight Panel Cover Treatment
1.44Kgs (Typ.) - Antiglare, Hard coating (3H)

LG Display LM195WX1-SLC1 Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type (Right side) 16S2P 2 strings 30K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
47.7±3.2V 75/80mA (Typ./Max.) 7.2/7.6W (Typ./Max.)
Interface Features : Position Backlight Driver Type
No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
YEONHO 10035WR-H06D(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CNAANC

LG Display LM195WX1-SLC1 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
5.0V (Typ.) 380/480mA (Typ./Max.) 1.9/2.4W (Typ./Max.)
Interface Features : Position Signal Type
LVDS (2 ch, 8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
UJU IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160B

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LM195WX1-SLC1 LG Display 19.5" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

LM195WX1-SLC1 TFT LCD Panel



WLED Lamp LCD Display Panels



TFT LCD Display SVGA 119PPI


Wholesale LM195WX1-SLC1 LG Display 19.5" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

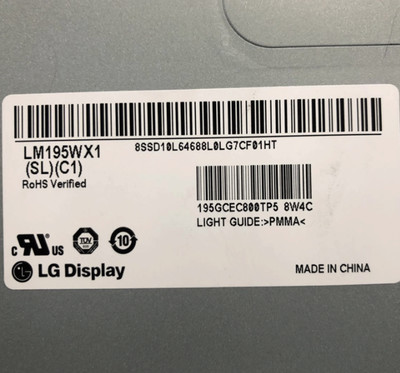

LM195WX1-SLC1 LG Display 19.5" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY Images
