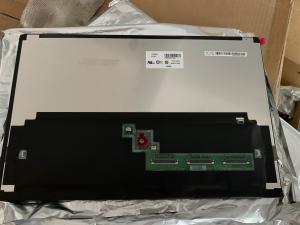

15.4" WLED 800cd/M2 Industrial LCD Display LA154WU1-SL01 147PPI WUXGA

Name: 154quot WLED 800cdM2 Industrial LCD Display LA154WU1SL01 147PPI WUXGA
Brand: LG DISPLAY
Price: 1 USD

Wholesale 15.4" WLED 800cd/M2 Industrial LCD Display LA154WU1-SL01 147PPI WUXGA from china suppliers

Brand Name : LG DISPLAY

Model Number : LA154WU1-SL01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LA154WU1-SL01

BRAND : LG DISPLAY

SIZE : 15.4 inch

BRIGHTNESS : 800CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1200 (WUXGA) 147PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C

Contact Now

LG Display LA154WU1-SL01 Application Details

Basic Info :	Panel Brand		Panel Model	LA154WU1-SL01
	Diagonal Size	15.4"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LA154WU1 (SL)(01)
Reliability :	Operating Temp.	-30 ~ 85 °C	Storage Temp.	-40 ~ 95 °C

LG Display LA154WU1-SL01 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1200 [WUXGA]	Dot Pitch	0.0574×0.1722 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1722×0.1722 mm (H×V) [147PPI]
Mechanical Size :	Display Area	330.624×206.64 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	341.2×219.14 mm (H×V)	Outline Depth	6.95/13.0 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style
Other Features :	Weight	830/850g (Typ./Max.)	Surface	Glare (Haze 0%), Hard coating (3H)

LG Display LA154WU1-SL01 Optical Details

Basic Information :	Brightness	800 cd/m² (Typ.)	Contrast Ratio	1450:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	10/8 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	88%	sRGB	100% coverage
	Adobe RGB	85% coverage	DCI-P3	90% coverage
	Rec.2020	65% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance

LG Display LA154WU1-SL01 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	20K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position	Edge light type
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	12.0V (Typ.)		Current Input	-

LG Display LA154WU1-SL01 Interface Details

Signal Systerm :	SLVS (1 ch, 2 port)			Logic Voltage	-
Signal Electrical :	Voltage Input	12.0V (Typ.)		Current Input	1.96±0.39A
Signal Electrical :	Consumption	23.52/28.22W (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :		99S11D-40MA-D		6 pins	1 pcs
