LG Display LM245WFA-SSA1 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | LM245WFA-SSA1 | a-Si TFT-LCD , LCM | LM245WFA (SS)(A1) |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 5 ~ 50 °C | -20 ~ 60 °C |
LG Display LM245WFA-SSA1 Mechanical Features
| Screen Size : | 24.5" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0944×0.2832 mm | 0.2832×0.2832 mm [89PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 543.744×302.616 mm | - | 552.5×319.6 mm | 8.35/13.95 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | 3-side borderless |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 1.79/1.87Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) |
| Holes & Brackets : | Rear mounting holes |
LG Display LM245WFA-SSA1 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 5 (Typ.)(G to G) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 80% | 100% | 78% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 83% | 60% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
LG Display LM245WFA-SSA1 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 30K(Min.) | 4 strings × 2CN | 4 strings × 2CN | - |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
| 23.0±1.6V | 81/86mA (Typ./Max.) | 14.9/16.0W (Typ./Max.) |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| No | Connector | |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 10035WS-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
LG Display LM245WFA-SSA1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 10.0V (Typ.) | 640/800mA (Typ./Max.) | 6.4/8.0W (Typ./Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| eDP (8 Lanes), HBR2 (5.4G/lane) | Connector | |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20525-060E-01 | 1 pcs | 60 pins | 0.4 mm |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 543.744(W)×302.616(H) mm, outline size of 552.5(W)×319.6(H)×13.95(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.79/1.87Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM245WFA-SSA1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM245WFA-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.).
|
|

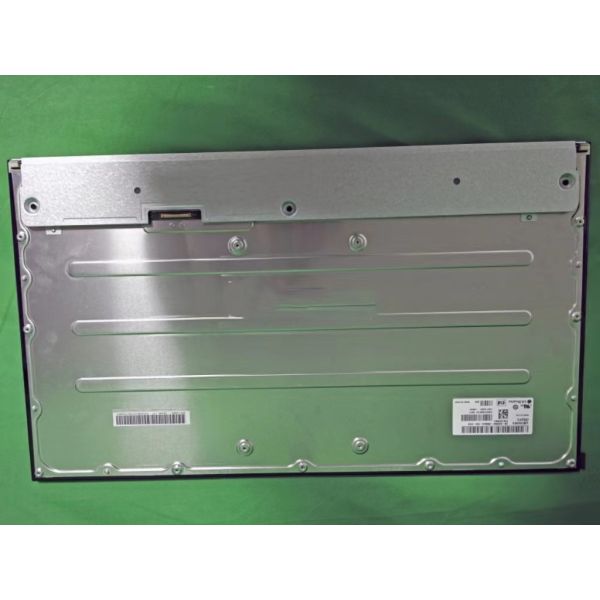

LM245WFA-SSA1 LG Display 24.5" 1920(RGB)×1080, 400 cd/m² INDUSTRIAL LCD DISPLAY Images
|
