NV156FHM-N3D BOE 15.6" 1920(RGB)×1080, 220 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

Brand Name : BOE

Model Number : NV156FHM-N3D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : BOE

Diagonal Size : 15.6"

Resolution : 1920(RGB)×1080, FHD 141PPI

Luminance : 220 cd/m² (Typ.)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Max. Ratings : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Voltage Supply : 3.3V (Typ.)

Contact Now

BOE NV156FHM-N3D Carton Details

Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Carton	35	1	475×335×285	15.80	0.0454
Pallet	630	18	N/A	N/A	N/A

NV156FHM-N3D BOE 15.6" 1920(RGB)×1080, 220 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

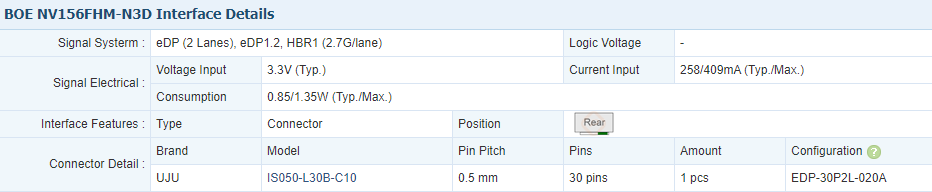

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×216.68(H)×3.2(D) mm, with surface treament of Antiglare, net weight of 380g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV156FHM-N3D can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV156FHM-N3D utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)

NV156FHM-N3D BOE 15.6" 1920(RGB)×1080, 220 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

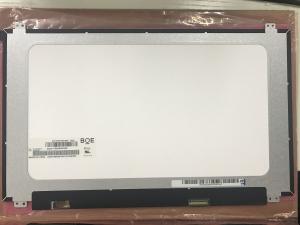

NV156FHM-N3D BOE 15.6" 1920(RGB)×1080, 220 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY Images
