LG Display LP156WFF-SPB1 Application Details
| Basic Detail : | Manufacturer Model Name LP156WFF-SPB1 Panel Type a-Si TFT-LCD , LCM Another Name LP156WFF (SP)(B1), LGD0637 Panel Size Designed For |
| Maximum Ratings : | OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C RoHS Vibration Level 2.0G (19.6 m/s²) |
LG Display LP156WFF-SPB1 Mechanical Details
| Pixel Features : | Number of Pixel 1920(RGB)×1080, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.05975×0.17925 mm Pixel Pitch(W×H) 0.17925×0.17925 mm [141PPI] |
| Physical Size : | Active Viewing 344.16(W)×193.59(H) mm Overall Dim. 349.16(W)×213.09(H) mm Bezel Opening - Overall Depth 2.43/2.6 (Typ./Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style Slim (PCBA Flat, T≤3.2mm) |
| Fixation : | Without |
| Other Detail : | Mass 310g (Max.) Surface Antiglare |
LG Display LP156WFF-SPB1 Optical Details
| Basic Detail : | Luminance 300 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 30 (Typ.)(Tr+Td) ms Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.40/1.60 (Max.)(5/13 points) |
| 1931 Color Gamut : | NTSC Ratio 73% sRGB 98% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LP156WFF-SPB1 Interface Detail
| Signal Electrical : | Input Current 143/158mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption 0.47/0.52W (Typ./Max.) Signal Interface eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) |
| Interface Features : | Position Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment HRS 0.5 mm 30 pins 1 pcs EDP-30P2L-020I |
LG Display LP156WFF-SPB1 Lightting Details
| Lamp Features : | Lamp Type WLED Amount - Position Edge light type Exchange - Lamp Shape - Lamp Life 15K(Min.) (Hours) |
| Interface Features : | Position - Type Included in signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Voltage 5/12/21V (Min./Typ./Max.) Input Current 292/296mA (Typ./Max.) Consumption 3.5/3.55W (Typ./) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 349.16(W)×213.09(H)×2.6(D) mm, with surface treament of Antiglare, net weight of 310g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP156WFF-SPB1 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP156WFF-SPB1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

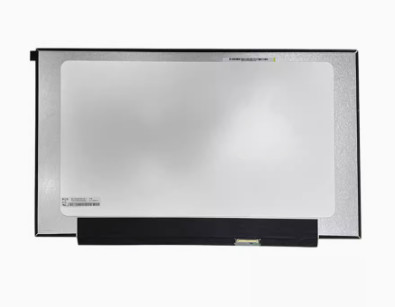

LP156WFF-SPB1 LG Display 15.6" 1920(RGB)×1080, 300 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY Images
|
