LQ173M1JW12 Sharp 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

Name: LQ173M1JW12 Sharp 173quot 1920RGB1080 300 cdm INDUSTRIAL LCD DISPLAY
Brand: Sharp
Price: 1 USD

Wholesale LQ173M1JW12 Sharp 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : Sharp

Model Number : LQ173M1JW12

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : Sharp

Diagonal Size : 17.3"

Resolution : 1920(RGB)×1080, FHD 127PPI

Luminance : 300 cd/m²

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Max. Ratings : Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Active Area : 381.888(W)×214.812(H) mm

Outline(mm) : 389.89 × 228.2 × 5.45 (H×V×D)

Contact Now

Sharp LQ173M1JW12 Carton Details

Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Carton	15	1	515×372×202	13.00	0.0387

LQ173M1JW12 Sharp 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

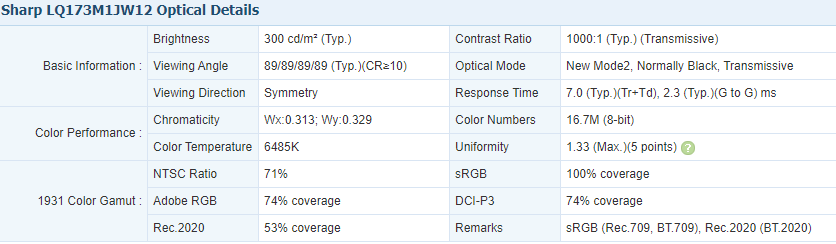

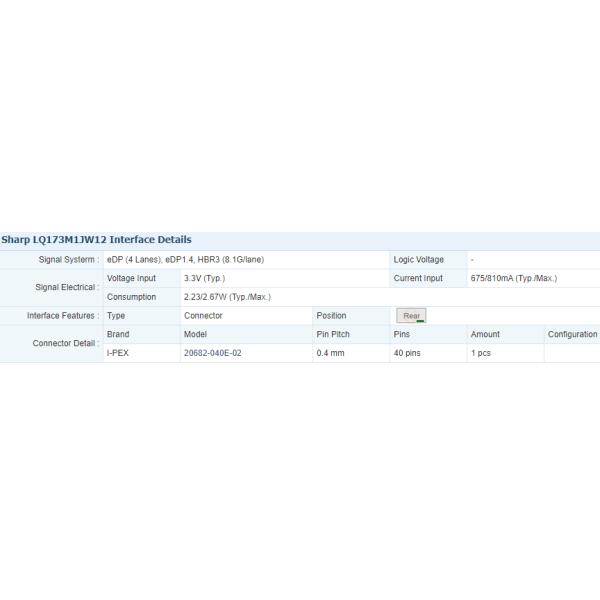

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 389.89(W)×228.2(H)×5.45(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 500g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ173M1JW12 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7.0 (Typ.)(Tr+Td), 2.3 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ173M1JW12 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)

LQ173M1JW12 Sharp 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

LQ173M1JW12 Sharp 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
