LM238WF5-SSH1 LG Display 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

Name: LM238WF5SSH1 LG Display 238quot 1920RGB1080 250 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

Wholesale LM238WF5-SSH1 LG Display 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : LG Display

Model Number : LM238WF5-SSH1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : LG Display

Diagonal Size : 23.8"

Resolution : 1920(RGB)×1080, FHD 92PPI

Luminance : 250 cd/m²

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM238WF5-SSH1 Carton Details

Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Carton	10	1	635×370×400	N/A	0.0940
Pallet	120	12	1140×1300×930	N/A	1.3783

LM238WF5-SSH1 LG Display 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

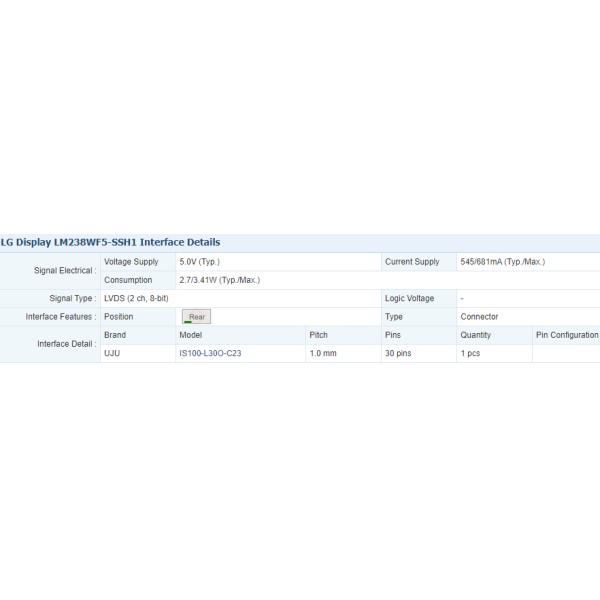

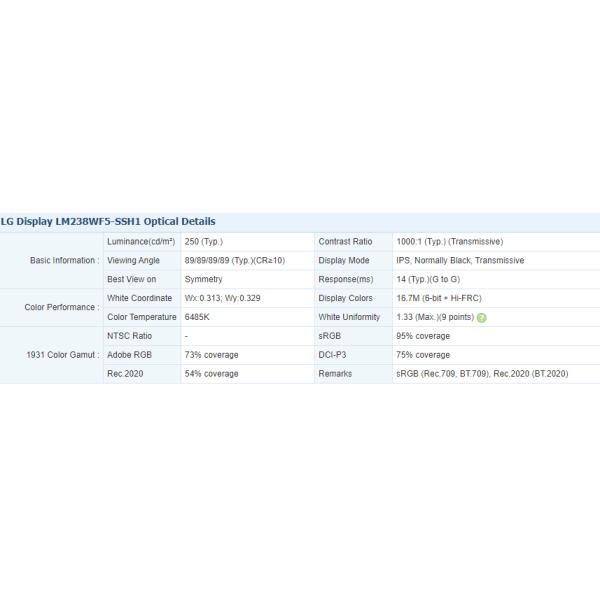

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535.24(W)×313.63(H)×11.21(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 2.24/2.36Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WF5-SSH1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 15S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WF5-SSH1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).

LM238WF5-SSH1 LG Display 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

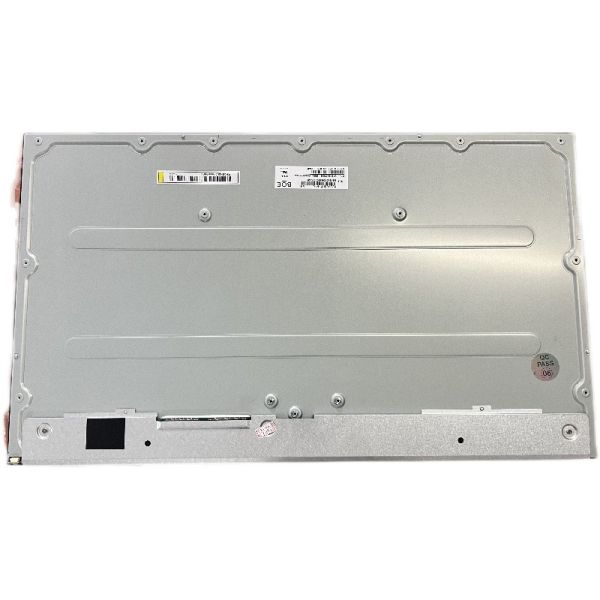

LM238WF5-SSH1 LG Display 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
