LG Display LM315WR1-SSB1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | LM315WR1-SSB1 | a-Si TFT-LCD , LCM | LM315WR1 (SS)(B1) |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM315WR1-SSB1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 350 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 93% | 100% | 84% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 94% | 69% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.33 (Max.)(9 points) |
LG Display LM315WR1-SSB1 Mechanical Features
| Panel Size : | 32.0" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.18159×0.18159 [139PPI] | 0.06053×0.18159 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 697.306(H) × 392.234(V) | - | 709.11(H) × 405.48(V) | 9.60/13.6 (Typ./Max.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | 4-side borderless |
| Mounting : | Rear mounting holes (13-M3) |
| Other Detail : | Weight | Panel Cover | Treatment |
| 4.52/4.75g (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM315WR1-SSB1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type (Bottom side) | 11S4P×2CN | 4 strings × 2CN | 30K(Min.) | - |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
| 31.5±2.2V | 90/95mA (Typ./Max.) | 22.7/24.2W (Typ./Max.) |
| Interface Features : | Position | Backlight Driver | Type |
| | No | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 2 pcs | EDP-30P4L-050A |
LG Display LM315WR1-SSB1 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 10.0V (Typ.) | 0.85/1.06A (Typ./Max.) | 8.5/10.6W (Typ./Max.) |
| Interface Features : | Position | Signal | Type |
| | eDP (4 Lanes), HBR2 (5.4G/lane) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | EDP-30P4L-060A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 709.11(W)×405.48(H)×13.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 4.52/4.75g (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315WR1-SSB1 can provides 350 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 94% (DCI-P3). This product adopted 11S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR1-SSB1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.)
|
|

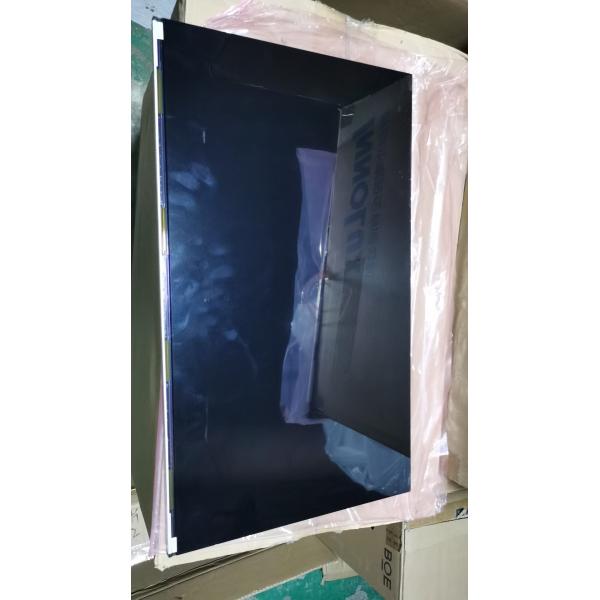

LM315WR1-SSB1 LG Display 32.0" 3840(RGB)×2160, UHD 139PPI 350 cd/m² INDUSTRIAL LCD DISPLAY Images
|
