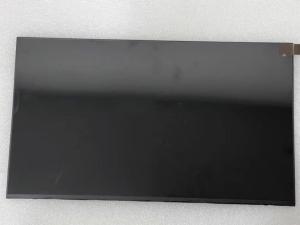

NE133FHM-N66 BOE 13.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

NE133FHM-N66 BOE 13.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : BOE

Model Number : NE133FHM-N66

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : BOE

Diagonal Size : 13.3"

Resolution : 1920(RGB)×1080, FHD 166PPI

Luminance : 300 cd/m²

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C

Contact Now

BOE NE133FHM-N66 Application Features

Basic Information : Brand Name Model Name Type Model Alias
NE133FHM-N66 Oxide TFT-LCD , LCM BOE0933
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 50 °C -20 ~ 70 °C

BOE NE133FHM-N66 Mechanical Features

Screen Size : 13.3"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.051×0.153 mm 0.153×0.153 mm [166PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
293.76×165.24 mm - 298.76×181.33 mm 2.2/4.5 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type Slim (PCBA Bent, T≤3.0mm)
Other Spec : Mass Panel Cover Surface Treatment
210g (Max.) - Antiglare (Haze 25%), Hard coating (3H)
Holes & Brackets : Without

BOE NE133FHM-N66 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
300 cd/m² (Typ.) FFS, Normally Black, Transmissive 1400:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
76% 100% 77%
DCI-P3 Coverage Rec.2020 Coverage Remarks
79% 56% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.54 (Max.)(5/13 points)

BOE NE133FHM-N66 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 15K(Min.) 9S6P 6 strings -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Included in signal interface -
WLED Driver Electrical : Input Voltage Input Current Power Consumption
5/12/21V (Min./Typ./Max.) 128.3mA (Max.) 1.54W (Max.)

BOE NE133FHM-N66 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 116/127mA (Typ./Max.) 0.38/0.42W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
I-PEX 20682-030E-02 1 pcs 30 pins 0.4 mm EDP-30P2L-020V

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 298.76(W)×181.33(H)×4.5(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 210g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a FFS, Normally Black, Transmissive LCM product, NE133FHM-N66 can provides 300 cd/m² display brightness 1400:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE133FHM-N66 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

NE133FHM-N66 BOE 13.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY


Wholesale NE133FHM-N66 BOE 13.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

NE133FHM-N66 BOE 13.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
