LG Display LM400RW1-SSA2 Application Details
| Basic Information : | Brand | | Model | LM400RW1-SSA2 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 40" | Alias | LM400RW1 (SS)(A2) |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | | Vibration | 1.0G (9.8 m/s²) |
LG Display LM400RW1-SSA2 Mechanical Details
| Pixel Features : | Resolution | 5120(RGB)×2160, WUHD | Dot Pitch(mm) | 0.0605×0.1815 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1815×0.1815 (H×V) [139PPI] |
| Mechanical Size : | Active Area(mm) | 929.28(H) × 392.04(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 942.61(H) × 414.64(V) | Depth(mm) | 16.02 (Typ.) |
| Outline Features : | Form Style | Curved Display | Outline Shape | 3-side borderless |
| Aspect Ratio | 21:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes |
| Other Spec : | Weight | 5.89/6.19Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM400RW1-SSA2 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 95% | sRGB | 100% coverage |
| Adobe RGB | 90% coverage | DCI-P3 | 96% coverage |
| Rec.2020 | 71% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM400RW1-SSA2 Interface Details
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 1.1/1.38A (Typ./Max.) |
| Consumption | 11.0/13.8W (Typ./Max.) |
| Signal Type : | eDP (8 Lanes), HBR2 (5.4G/lane) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20525-060E-01 | 1 pcs | 60 pins | 0.4 mm |
LG Display LM400RW1-SSA2 Backlight Details
| Backlight Features: | Shape | 4 strings × 2CN | Type | WLED | Position | Edge light type (Top side) |
| Replacement | - | Quantity | 15S4P×2CN | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 44.3±3V | Current Supply | 95/100mA (Typ./Max.) |
| Consumption | 33.7/36.0W (Typ./Max.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WS-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 929.28(W)×392.04(H) mm, outline size of 942.61(W)×414.64(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 5.89/6.19Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM400RW1-SSA2 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted 15S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM400RW1-SSA2 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.).
|
|

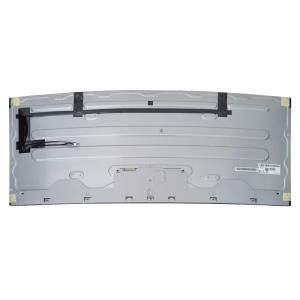

LM400RW1-SSA2 LG Display 40" 5120(RGB)×2160, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
