Brand Name : LG Display
Model Number : LA084X01-SL01
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1PCS
Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time : 1-2DAYS
Packaging Details : STANDARD PACKING
Brand : LG Display
Diagonal Size : 8.4"
Resolution : 1024(RGB)×768, XGA 152PPI
Active Area : 170.496(W)×127.872(H) mm
Environment : Operating Temp.: -40 ~ 75 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.0G (19.6 m/s²)
Contrast Ratio : 1100:1 (Typ.) (TM)
Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
---|---|---|---|---|
LA084X01-SL01 | a-Si TFT-LCD , LCM | LA084X01 (SL)(01) | ||
Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
-40 ~ 75 °C | -40 ~ 95 °C | 2.0G (19.6 m/s²) |
Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
---|---|---|---|
- | - | - | |
Best View on | Display Mode | Contrast Ratio | |
Symmetry | IPS, Normally Black, Transmissive | 1100 : 1 (Typ.) (Transmissive) | |
Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
- | 16.7M (8-bit) |
Panel Size : | 8.4" | |||
---|---|---|---|---|
Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.1665×0.1665 [152PPI] | 0.0555×0.1665 | |
Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
170.496(H) × 127.872(V) | - | - | - | |
Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
Flat Rectangle | Landscape type | 4:3 (H:V) | ||
Mounting : | Rear mounting Pole (6 pcs) |
Reverse Scan : | Yes (L/R) |
---|---|
Vertical Frequency : | 60Hz |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm. As a IPS, Normally Black, Transmissive LCM product, LA084X01-SL01 can provides 1100:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. It's typical vertical frame rate (Fv) is 60Hz
![]() |

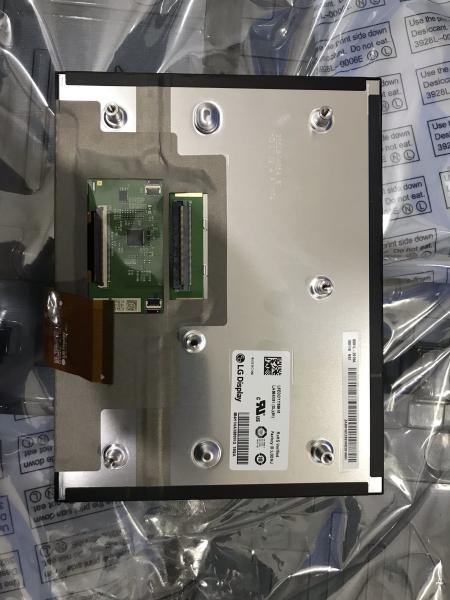

LA084X01-SL01 LG Display 8.4" 1024(RGB)×768, 170.496(W)×127.872(H) mm INDUSTRIAL LCD DISPLAY Images |
