Innolux NJ070NA-23A Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | NJ070NA-23A | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | -20 ~ 70 °C | -30 ~ 80 °C |
Innolux NJ070NA-23A Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 500 (Typ.) | 80/80/60/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K/16.7M (6-bit / 8-bit) | X:0.310; Y:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Innolux NJ070NA-23A Mechanical Features
| Panel Size : | 7.0" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×600 [WSVGA] | RGB Vertical Stripe | 0.1506×0.1432 [170PPI] | 0.0502×0.1432 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 154.214(H) × 85.92(V) | 157.21(H) × 89.49(V) | 164.9(H) × 100(V) | 4.8±0.3 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | |
| Mounting : | Without |
| Other Detail : | Weight | Panel Cover | Treatment |
| 1350g (Typ.) | - | Hard coating |
Innolux NJ070NA-23A Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type | - | - | 20K(Min.) | - |
| WLED Electrical : | Voltage Supply | Current Supply | Power |
| 8.4/9.9/10.2V (Typ./Max.) | 265mA (Typ.) | 2.62W (Typ.) |
| Interface Features : | Position | Backlight Driver | Type |
| - | No | Included in signal interface |
Innolux NJ070NA-23A Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 3.3/12/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) | 35/20/0.4/0.8mA (Typ.)(DIDD/AIDD/IGH/IGL) | 0.4W (Typ.) |
| Interface Features : | Position | Signal | Type |
| - | LVDS (1 ch, 6/8-bit) | FPC |
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| | | 0.5 mm | 40 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.214(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×5.1(D) mm, viewing area size of 157.21(W)×89.49(H) mm, with surface treament of Hard coating, net weight of 1350g (Typ.). As a TN, Normally White, Transmissive LCM product, NJ070NA-23A can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. NJ070NA-23A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL).
|
|

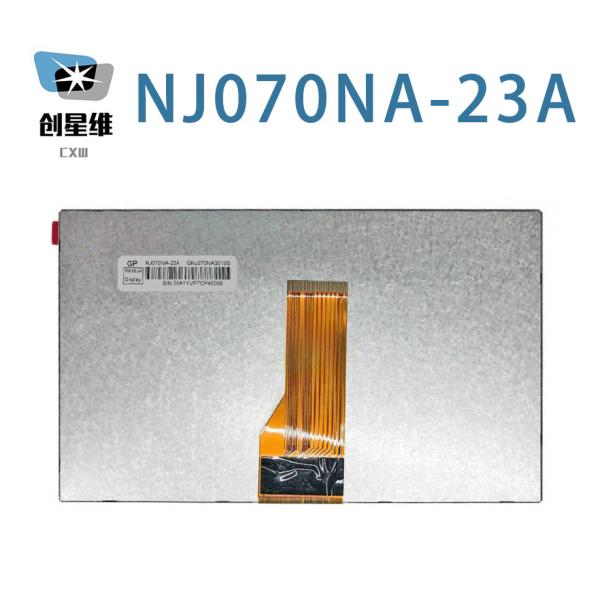

NJ070NA-23A Innolux 7.0" 1024(RGB)×600, 500 cd/m² INDUSTRIAL LCD DISPLAY Images
|
